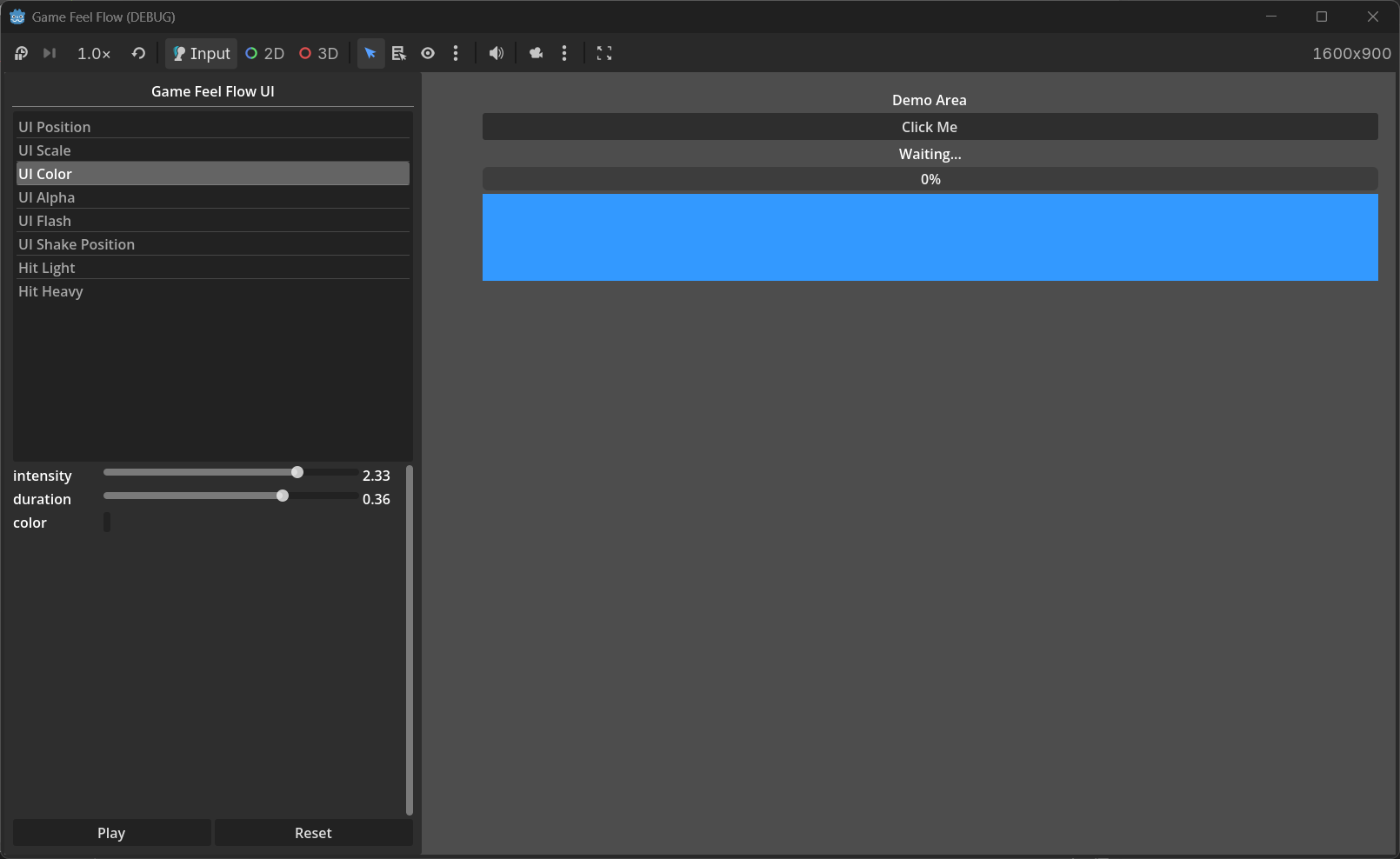

UI Effects

Pro Extension

Pro UI effects animate any CanvasItem node (buttons, labels, panels, sprites, progress bars) through the same GFFPlayer / GameFeelFlow API as gameplay effects.

UI Effects

Available UI Targets

Effect Name Target Class What it animates
ui_position GFFUIPositionTarget CanvasItem.position
ui_scale GFFUIScaleTarget CanvasItem.scale
ui_rotation GFFUIRotationTarget CanvasItem.rotation_degrees
ui_color GFFUIColorTarget CanvasItem.modulate
ui_alpha GFFUIAlphaTarget CanvasItem.modulate.a

Preset Effects

Pro registers these ready-made effect names automatically:

Preset Target Tweener Typical use
ui_position UI Position linear Slide a panel in/out
ui_scale UI Scale linear Button pulse on hover/click
ui_rotation UI Rotation linear Wobble a warning icon
ui_color UI Color color Tint a button on focus
ui_alpha UI Alpha linear Fade in a tooltip
ui_flash UI Color flash Damage flash on a portrait
ui_shake_position UI Position shake Shake a dialog on error
ui_shake_scale UI Scale shake Jitter a button on invalid input
ui_shake_rotation UI Rotation shake Wobble a locked icon

Code Example

# One-shot button pulse
GameFeelFlow.play("ui_scale", $Button, GFFParams.create(1.0, 0.15))

# Custom effect with relative offset
var effect = GFFEffectCommon.new()
effect.target = GFFUIScaleTarget.new()
effect.target.target_value = Vector2(1.2, 1.2)
effect.target.mode = GFFUIScaleTarget.Mode.BY_AMOUNT
effect.target.pivot_offset = Vector2(64, 32)  # center of a 128x64 button
effect.tweener = GFFElasticTweener.new()
effect.duration = 0.3

GameFeelFlow.play_effect($Button, effect)

UI Position Modes

GFFUIPositionTarget supports the same modes as gameplay transform targets:

  • TO_TARGET — move to the absolute target_value (multiplied by intensity).
  • BY_AMOUNT — move by target_value relative to the current position.
  • FROM_TARGET — start at target_value and move back to the current position.

UI Scale Pivot

GFFUIScaleTarget exposes an optional pivot_offset. When set, the node’s pivot_offset is applied before scaling, which keeps the scale anchored to a specific point instead of the top-left corner.

var target = GFFUIScaleTarget.new()
target.target_value = Vector2(1.3, 1.3)
target.pivot_offset = $Button.size / 2.0
target.mode = GFFUIScaleTarget.Mode.BY_AMOUNT

UI Color & Alpha

  • GFFUIColorTarget animates the full modulate color.
  • GFFUIAlphaTarget animates only modulate.a while preserving the existing RGB.

Both support Restore so the UI element returns to its original appearance after the effect.

Combining UI and Gameplay Effects

Because UI effects use the same GFFEffect architecture, you can chain them with gameplay effects in a single combo:

# Player takes damage: camera shake + HUD flash in one combo
var combo = GFFCombo.new()
combo.add_block(GFFComboBlock.new(0.0, "camera_shake", $Camera3D))
combo.add_block(GFFComboBlock.new(0.0, "ui_flash", $Portrait))
$GFFPlayer.play_combo("damage_feedback", $Player)
